Snowflake Table

1. Overview

Snowflake is a fully managed SaaS that provides a single platform for data warehousing, data lakes, data engineering, data science, data application development, and secure sharing and consumption of real-time/shared data.

Cinchy introduced Snowflake as a source and target Connector in v5.2 of the platform.

How Connections Loads Data into Snowflake

For batch syncs of 10 records or less, single Insert/Update/Delete statements are executed to perform operations against the target Snowflake table.

For batch syncs exceeding 10 records, the operations are performed in bulk.

The bulk operation process consists of:

  1. Generating a CSV containing a batch of records

  2. Creating a temporary table in Snowflake

  3. Copying the generated CSV into the temp table

  4. If needed, performing Insert operations against the target Snowflake table using the temp table

  5. If needed, performing Update operations against the target Snowflake table using the temp table

  6. If needed, performing Delete operations against the target Snowflake table using the temp table

  7. Dropping the temporary table

Real time sync volume size is based on a dynamic batch size up to configurable threshold.

2. Considerations

  • The temporary table generated in the bulk flow process for high volume scenarios transforms all columns of data type Number to be of type NUMBER(38, 18). This may cause precision loss if the number scale in the target table is higher

3. Load Metadata

In the Load Metadata pop-up (Image 1), enter the following information and click Load:

Parameter
Description

Connection String

This will be the encrypted connection string.

Table

This will be the name of your target table. Ex: dbo.employees

4. Basic Parameters

  1. Add in information about your ID Column if applicable (Image 2).

Note that if you want to use "Delete" action in your sync behaviour configuration then you must input a value for your ID Column and ID Column Data Type.

Parameter
Description

ID Column

The name of the identity column that exists in the target (OR a single column that is guaranteed to be unique and automatically populated for every new record).

ID Column Data Type

Either: Text, Number, Date, Bool, Geography, or Geometry

5. Column Mappings

When specifying the Target Column in the Column Mappings section, all names are case-sensitive.

6. Filters

PreviousSalesforce ObjectNextSnowflake Table Target XML Example

Last updated 2 years ago

Was this helpful?

Unencrypted example: account=wr38353.ca-central-1.aws;user=myuser;password=mypassword;db=CINCHY;schema=PUBLIC You can review Snowflake's Connection String guide and parameter descriptions

Add in your applicable column(s) (Image 3). for further details on each column type.

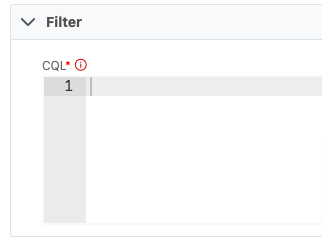

You may choose to use CQL to create a filter (Image 4). for more on filters.

See the documentation here
Review the documentation here
here.
Image 1: Load your Metadata
Image 2: Basic parameters
Image 3: Column Mappings
Image 4: Adding a Source Filter
