  1. Builder Guide
  2. Configuring a Data Sync
  3. Supported Data Sources
  4. File Based Source

Delimited File

PreviousBinary File Data Source ExampleNextDelimited File Data Source XML Example

Last updated 2 years ago

Was this helpful?

1. Considerations

  • Geometry, Geography, and Binary data types are not supported for Delimited Files.

2. Load Metadata

Source

The source of your file. This can be local upload, Amazon S3, or Azure Blob Storage.

delimiter

The delimiter character, use U+#### syntax (e.g. U+0001) for unicode characters

textQualifier

The text qualifier character, e.g. " (which would be represented as "")

headerRowsToIgnore

The number of records from the top of the file to ignore before the data starts (includes column header). See note below for more on this parameter.

encoding

The encoding of the file, defaults to UTF8 if not specified, but also supports UTF8_BOM, ASCII, and UTF16

path

The path to the source file to load. To upload a local file, you must first insert a Parameter in the Info tab of the connection (ex: filepath). Then, you would reference that same value in this location (Ex: @Filepath). This will then trigger a File Upload option to import your delimited file.

Auth Type

This field defines the authentication type for your data sync. Cinchy supports "Access Key" and "IAM" role. When selecting "Access Key", you must provide the key and key secret. When selecting "IAM role", a new field will appear for you to paste in the role's Amazon Resource Name (ARN). You also must ensure that:

Note: This field was added in Cinchy v5.6

If you use both useHeaderRecord="true" and HeaderRowsToIgnore = 1, two rows will be ignored. Refer to the below to ensure you are receiving the results you want: One row as headers: useHeaderRecord="true" and HeaderRowsToIgnore = 0

Two rows as headers: useHeaderRecord="true" and HeaderRowsToIgnore = 1 Three rows as headers: useHeaderRecord="true" and HeaderRowsToIgnore = 2

2. Schema

Geometry, Geography, and Binary data types are not supported for Delimited Files.

3. Filter

The role to have at least read access to the source

The Connections pods' role must specified in the data sync config

Add in your applicable column(s) (Image 2). for further details on each column type.

You may choose to use CQL to create a filter (Image 3). for more on filters.

See the documentation here
Review the documentation here
must be configured
have permission to assume the role

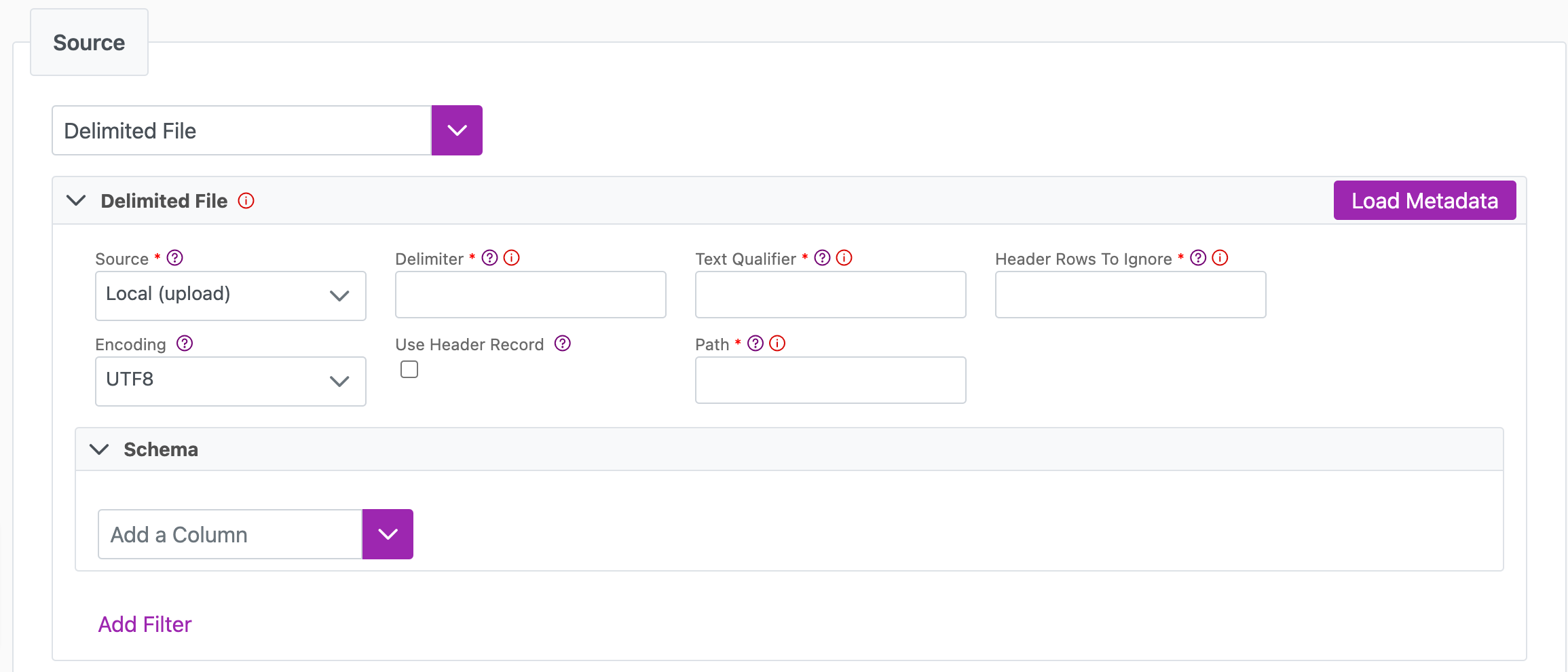

Image 1: Load the Metadata
Image 2: Schema

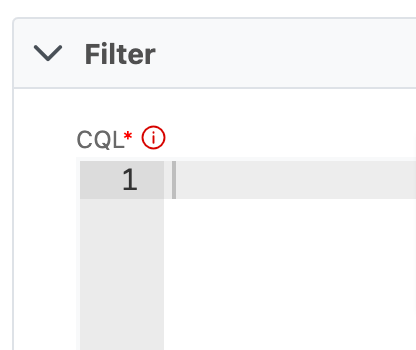

Image 3: Adding a Filter
